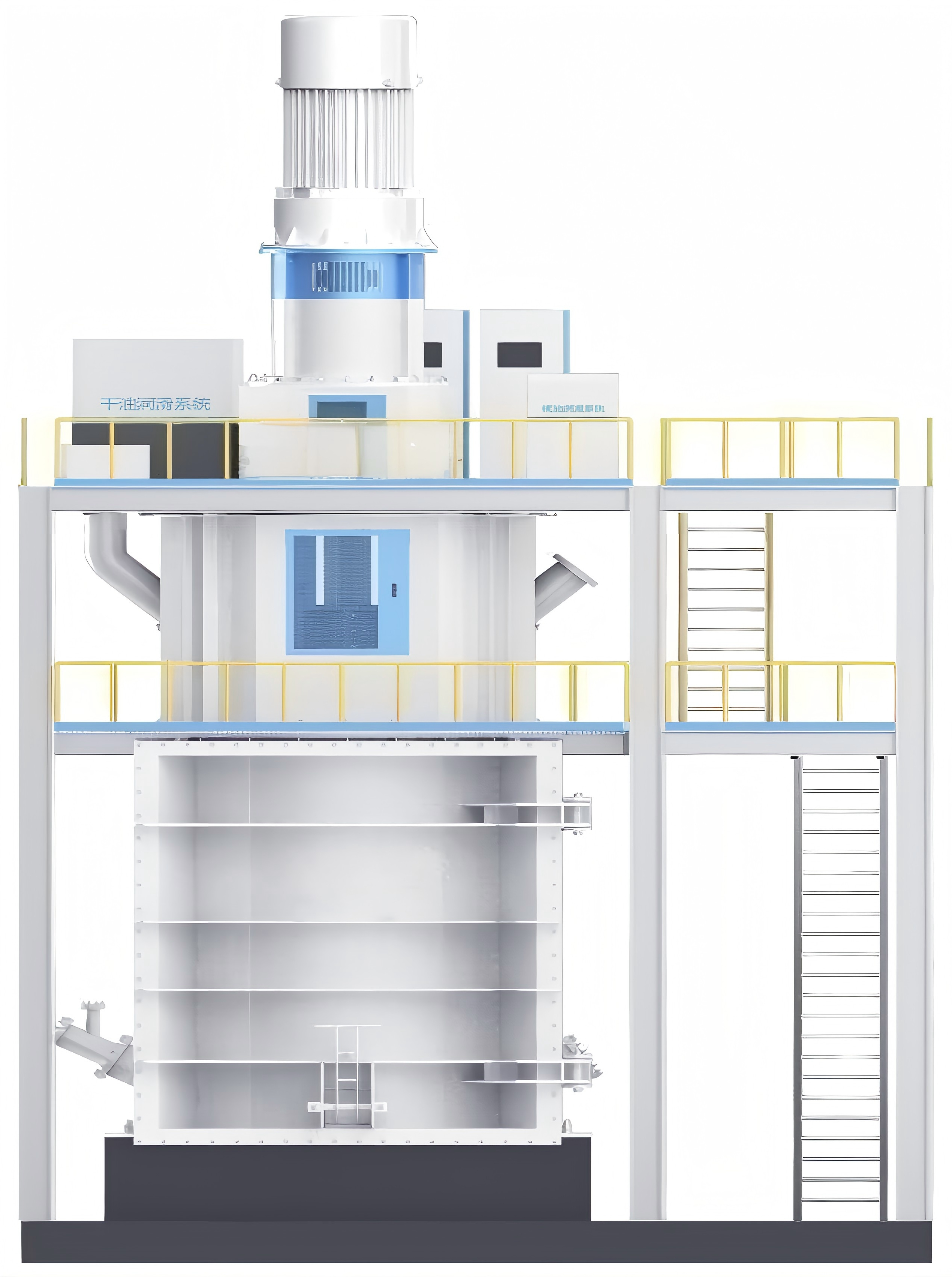

YJM-1800Tower mill
Inner Diameter of Barrel:1800mm | Throughput:15-25t/h
Device Features
- • Smaller grinding media with higher quantity and larger effective grinding area for improved efficiency
- • Low operating energy consumption: reduces 20% to 30% compared to traditional ball mills
- • High uptime, typically above 95%
- • Fully enclosed housing ensures high reliability even in harsh outdoor environments
- • High-efficiency self-protecting grid liner system to effectively prevent grinding chamber surface wear
- • Vertical axis and spiral design extend bearing life
- • Compact footprint, quiet operation
- • Internal self-classification of material in the cylinder reduces over-grinding and ensures uniform product particle size.
Key Technical Specifications
| Model | YJM-1800 |
| Motor Power (kW) | 250 |
| Inner Diameter of Cylinder (mm) | 1800 |
| Effective Volume (m³) | 8.0 |
| Throughput (t/h) | 15-25 |
Product Overview
The tower mill is a vertical media stirred mill consisting of a drive motor, gear reducer, enclosed upper drive bearing housing, and grinding chamber arranged sequentially from top to bottom. A vertical stirring spiral resides within the grinding chamber along with the grinding media and pulp feed.
YJM-1800 Tower Mill is designed for medium-sized ultrafine grinding production lines, with a motor power of 250 kW and a throughput of 15-25 t/h.
Notes:Data for feed size -200 mesh 60%-70% and product size -400 mesh 85%-90%.
